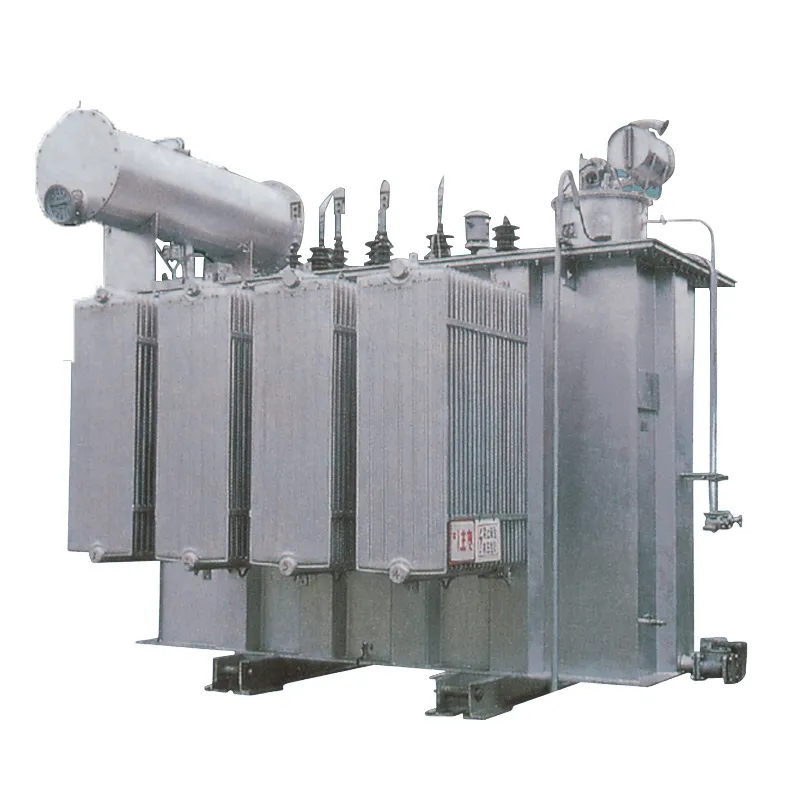

Description
The oil-immersed power transformer is composed of a core, coil, voltage regulating switch, oil tank, and other components, and the dielectric medium is dielectric oil. The oil-immersed power transformer is used for regulating voltage and AC power transmission.
The advantages include small dimensions, reasonable prices, strong weather resistance, and so on. It is applicable to power systems, industrial and mining enterprises, transportation, post and telecommunications sector, research institutes, etc. A variety of transformers under 110kV are included in the product line: the stacked iron core structure series, the rolled iron core structure series, the amorphous alloy series, etc. Smart and diverse structures and a nice appearance make this product meet the needs of different users.
Special features
Core
High-quality grain-oriented cold-rolled silicon steel sheet and the whole oblique non-porous banding structure are used in the transformer. The core has a multi-level ladder shape, with three joints or five joints, which is of low no-load loss and low noise. Rolled cores are direct rolled by certain special equipment, which gives the advantages including no seam, no corner weight, reluctance reduction, low no-load loss. Amorphous alloy is an advanced core material, which leads to an average reduction of 72% no-load loss and a reduction of 50% no-load current.
Coil
The high-quality QQ acetal enameled round copper wire and oxygen-free copper rod are used to form the coil. The coil type includes cylinder type, continuous type, new type spiral type, split type, etc. It has sufficient electrical strength, mechanical strength and cooling capacity.
In order to increase the capacity of anti-short circuit of the transformer, self-adhesive transposition wire is used in the 35kV and above windings. The wire is made of self-adhesive acetal enameled flat wire, and after winding into a coil, it is heated so that the flat wire could be bonded between each other to form a rigid coil, which can withstand greater bending stress, thereby enhancing the capacity of anti-short circuit of the transformer. The most important feature of the self-adhesive transposition wire is that it can reduce the loss of the transformer, and as a result of multi-stranded conductor with transposition, the eddy current loss and circulation loss are greatly reduced, it can also reduce the temperature rise of the partial hot spots of winding, thus the winding temperature distribution is more uniform.
Oil tank
The oil tank is made of high quality steel plate, and the shape includes elliptical shape, rectangular shape, etc. The type of the radiator includes corrugated sheet type radiator, expansion type radiator and corrugated type tank. The sealing performance test is conducted on oil tanks. The inside and outside surfaces are pickling, and phosphate treated, and then spray priming paint for three times and surface paint for one time, which give its corrosion resistance.
Ambient air temperature
--- Maximum temperature: +40ºC
--- Minimum temperature: -45ºC
--- Average temperature of the warmest month: +30ºC
--- The hottest annual average temperature: +20ºC
Altitude: ≤ 1000m
Contamination class: III;
Seismic intensity: VIII
Power supply voltage waveform: approximately sinusoidal;
Note: If the above conditions are exceeded, please specify when ordering, for special consideration.
Features
♦Good Economic Performance
The NX series products are based on the S11 series, the no-load loss is reduced, and the no-load current is reduced compared with the S11 series.
♦Long Lasting
The transformer oil tank adopts a fully sealed structure. The oil tank and the tank edge can be connected by bolts or welded to death. The transformer oil does not meet the air, which prolongs the service life.
♦High Operational Reliability
The relevant parts of the fuel tank seal are improved to increase the reliability and improve the technological level to ensure the reliability of the seal.
♦Small Footprint
S series transformer oil tank adopts corrugated plate radiator. When the oil temperature changes, the corrugated plate thermal expansion and contraction can replace the role of the oil conservator. The corrugated plate oil tank has a beautiful appearance and small footprint.
After-sales service:
Provide comprehensive pre-sales consulting and program design services.
Provide free repair or replacement service for faults caused by product quality problems during the product warranty period.
Provide lifelong technical support and after-sales service to ensure that customers have no worries.
Product Parameters
66kV, Off-load, Liquid-immersed Power Transformer
Rated Capacity (kVA) | Level 1 (S22) | Level 2 (S20) | Level 3 (S13) | Short-circuit impedance% | |||
No-load loss (kW) | Load loss (75℃) (kW) | No-load loss (kW) | Load loss (75℃) (kW) | No-load loss (kW) | Load loss (75℃) (kW) | ||
3150 | 2.2 | 20.7 | 2.6 | 20.7 | 3.2 | 21.9 | 8 |
4000 | 2.6 | 24.6 | 3.1 | 24.6 | 3.8 | 25.9 | |
5000 | 3.1 | 27.6 | 3.7 | 27.6 | 4.6 | 29.2 | |
6300 | 4.0 | 30.8 | 4.7 | 30.8 | 5.8 | 32.5 | 9 |
8000 | 4.9 | 36.5 | 5.8 | 36.5 | 7.1 | 38.5 | |
10000 | 5.8 | 43.0 | 6.8 | 43.0 | 8.4 | 45.4 | |
12500 | 6.8 | 51.1 | 8.1 | 51.1 | 9.9 | 54.0 | |
16000 | 8.3 | 62.8 | 9.8 | 62.8 | 12.0 | 66.3 | |
20000 | 9.7 | 76.1 | 11.4 | 76.1 | 14.1 | 80.4 | |
25000 | 11.4 | 90.0 | 13.5 | 90.0 | 16.6 | 95.0 | |
31500 | 13.5 | 108.0 | 16.0 | 108.0 | 19.7 | 114.0 | |
40000 | 16.2 | 126.9 | 19.1 | 126.9 | 23.5 | 134.0 | |
50000 | 19.4 | 150.3 | 22.9 | 150.3 | 28.2 | 158.7 | |
63000 | 22.9 | 178.2 | 27.0 | 178.2 | 33.3 | 188.1 | |
*All parameters are for reference only; The final data will be customized according to the order.
66kV, On-load, Liquid-immersed Power Transformer
Rated Capacity (kVA) | Level 1 (S22) | Level 2 (S20) | Level 3 (S13) | Short-circuit impedance% | |||
空载损耗 No-load loss (kW) | 负载损耗 Load loss (75℃) (kW) | 空载损耗 No-load loss (kW) | 负载损耗 Load loss (75℃) (kW) | 空载损耗 No-load loss (kW) | 负载损耗 Load loss (75℃) (kW) | ||
6300 | 4.4 | 30.8 | 5.2 | 30.8 | 6.4 | 32.5 | 9 |
8000 | 5.3 | 36.5 | 6.2 | 36.5 | 7.7 | 38.5 | |
10000 | 6.2 | 43.0 | 7.3 | 43.0 | 9.0 | 45.4 | |
12500 | 7.4 | 51.1 | 8.7 | 51.1 | 10.7 | 54.0 | |
16000 | 8.9 | 62.8 | 10.5 | 62.8 | 12.9 | 66.3 | |
20000 | 10.6 | 76.1 | 12.5 | 76.1 | 15.4 | 80.4 | |
25000 | 12.5 | 90.0 | 14.8 | 90.0 | 18.2 | 95.0 | |
31500 | 14.8 | 108.0 | 17.5 | 108.0 | 21.5 | 114.0 | |
40000 | 17.7 | 126.9 | 20.9 | 126.9 | 25.8 | 134.0 | |
50000 | 20.9 | 150.3 | 24.7 | 150.3 | 30.4 | 158.7 | |
63000 | 24.7 | 178.2 | 29.2 | 178.2 | 35.9 | 188.1 | |
*All parameters are for reference only; The final data will be customized according to the order.
66kV, Series S11, On-load, Liquid-immersed Power Transformer
Rated Power (kVA) | Voltage and Combination | Vector Group | No-load loss (W) | Load loss (75℃) (W) | No-load Current (%) | Impedance at principal tapping (%) | ||
H. V.(kV) | Tapping | L. V.(kV) | ||||||
6300 | 63 66 69 | ±8×1.25 | 6.3 6.6 10.5 | YNd11 | 8 | 34.2 | 0.60 | 9.0~11.0 |
8000 | 9.6 | 40.5 | 0.60 | |||||
10000 | 11.3 | 47.8 | 0.56 | |||||
12500 | 13.4 | 56.8 | 0.56 | |||||
16000 | 16.1 | 69.8 | 0.52 | |||||
20000 | 19.2 | 84.6 | 0.52 | |||||
25000 | 22.7 | 100 | 0.48 | |||||
31500 | 26.9 | 120 | 0.44 | |||||
40000 | 32.2 | 141 | 0.44 | |||||
50000 | 38 | 167 | 0.40 | 10.0~12.0 | ||||
63000 | 44.9 | 198 | 0.36 | |||||
*All parameters are for reference only; The final data will be customized according to the order.
