Description
Low voltage switchgear is a device used for power transmission, distribution, and energy conversion, suitable for industries such as power plants, petroleum, chemical, metallurgical, textile, and high-rise buildings. It complies with the standard GB7251.1-2013 "Low Voltage Switchgear" and has the characteristics of strong breaking capacity, good dynamic and thermal stability, flexible electrical scheme, and convenient combination.
General
1.Rating: Rated voltage: 380V.
2.Rated current: 3150A, 50-60Hz
3.Application: mainly applicable in power station, power substation industrial and
mining enterprises as energy converter, distributor and controller of power, light
and distribution device.
4.Standard: IEC60439-1
Parameter

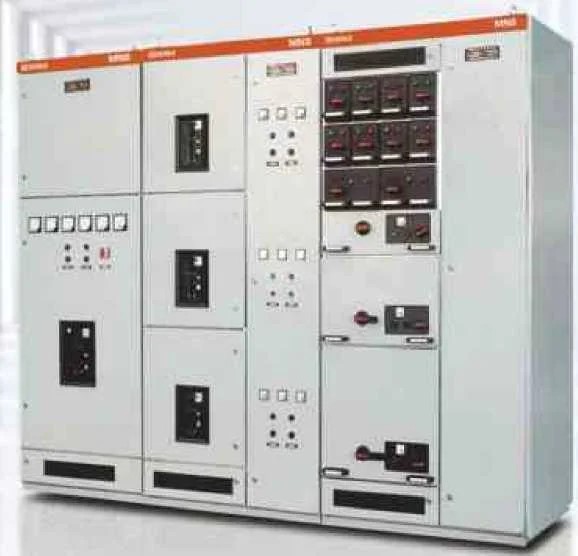

MNS Type Low Voltage Withdrawable Switchgear
Item | Description | Unit | Parameter | |
1 | Rated Voltage | V | 660(1000) | |
2 | Rated Operating Voltage | V | 380,660 | |
3 | Main Busbar Maximum Operating Current | A | 6300A | |
4 | Main Busbar Rated Withstand Current | kA/s | 100/1 | |
5 | Main Busbar Rated Peak Withstand Current | kA/s | 220/0.1 | |
6 | Distribution Bus (vertical bus) Maximum Operating Current | A | 1000A | |
7 | Distribution Bus (vertical bus) Peak Current | Standard Type Enhanced Type | kA/s kA/s | 105/0.1 176/0.1 |
8 | Dimensions (Width × Depth × Height) | mm | 600(800,1000) ×800(1000) ×2200 | |
GGD Type AC Low Voltage Distribution Cabinet
Item | Description | Unit | Parameter | |
1 | Rated Voltage | V | 660(1000) | |
2 | Rated Operating Voltage | V | 380,660 | |
3 | Main Busbar Maximum Operating Current | A | 6300A | |
4 | Main Busbar Rated Withstand Current | kA/s | 100/1 | |
5 | Main Busbar Rated Peak Withstand Current | kA/s | 220/0.1 | |
6 | Distribution Bus (vertical bus) Maximum Operating Current | A | 1000A | |
7 | Distribution Bus (vertical bus) Peak Current | Standard Type Enhanced Type | kA/s kA/s | 105/0.1 176/0.1 |
8 | Dimensions (Width × Depth × Height) | mm | 600(800,1000) ×800(1000) ×2200 | |
Description
Low voltage switchgear is a device used for power transmission, distribution, and energy conversion, suitable for industries such as power plants, petroleum, chemical, metallurgical, textile, and high-rise buildings. It complies with the standard GB7251.1-2013 "Low Voltage Switchgear" and has the characteristics of strong breaking capacity, good dynamic and thermal stability, flexible electrical scheme, and convenient combination.
General
1.Rating: Rated voltage: 380V.
2.Rated current: 3150A, 50-60Hz
3.Application: mainly applicable in power station, power substation industrial and
mining enterprises as energy converter, distributor and controller of power, light
and distribution device.
4.Standard: IEC60439-1
Parameter
MNS Type Low Voltage Withdrawable Switchgear
Item | Description | Unit | Parameter | |
1 | Rated Voltage | V | 660(1000) | |
2 | Rated Operating Voltage | V | 380,660 | |
3 | Main Busbar Maximum Operating Current | A | 6300A | |
4 | Main Busbar Rated Withstand Current | kA/s | 100/1 | |
5 | Main Busbar Rated Peak Withstand Current | kA/s | 220/0.1 | |
6 | Distribution Bus (vertical bus) Maximum Operating Current | A | 1000A | |
7 | Distribution Bus (vertical bus) Peak Current | Standard Type Enhanced Type | kA/s kA/s | 105/0.1 176/0.1 |
8 | Dimensions (Width × Depth × Height) | mm | 600(800,1000) ×800(1000) ×2200 | |
GGD Type AC Low Voltage Distribution Cabinet
Item | Description | Unit | Parameter | |
1 | Rated Voltage | V | 660(1000) | |
2 | Rated Operating Voltage | V | 380,660 | |
3 | Main Busbar Maximum Operating Current | A | 6300A | |
4 | Main Busbar Rated Withstand Current | kA/s | 100/1 | |
5 | Main Busbar Rated Peak Withstand Current | kA/s | 220/0.1 | |
6 | Distribution Bus (vertical bus) Maximum Operating Current | A | 1000A | |
7 | Distribution Bus (vertical bus) Peak Current | Standard Type Enhanced Type | kA/s kA/s | 105/0.1 176/0.1 |
8 | Dimensions (Width × Depth × Height) | mm | 600(800,1000) ×800(1000) ×2200 | |
