Oil Natural Air Natural Natural Esters Liquids Oil Type Transformer

Description

Distribution transformer is also known as a typical kind of isolation transformer. The main function of this transformer is to alter the high voltage to the normal voltage like 208V 380V and 415V to use in electric that can be used in industries, infrastructure and households. With the rise of decentralized generated electricity, they are now also responsible for supplying power to the grid.

1. The transformer body adopts a new insulation structure, which improves the short-circuit resistance.

2. The transformer core is made of high-quality cold-rolled silicon steel sheets with high magnetic conductivity.

3. The transformer core consists of high/low-voltage windings are selected high-quality oxygen-free copper wire, and multi-layer cylindrical structure.

4. All fasteners with special anti-loosening treatment.

5. The oil tank is corrugated structure, the cover and the edge of the box are completely welded or fastened with bolts in two types, which fundamentally prolongs the service life of the transformer oil and insulating materials.

The above standards are subject to the latest released information; Equipment requirements should be based on the corresponding latest national professional standards.

Features

♦Good Economic Performance

The NX series products are based on the S11 series, the no-load loss is reduced, and the no-load current is reduced compared with the S11 series.

♦Long Lasting

The transformer oil tank adopts a fully sealed structure. The oil tank and the tank edge can be connected by bolts or welded to death. The transformer oil does not meet the air, which prolongs the service life.

♦High Operational Reliability

The relevant parts of the fuel tank seal are improved to increase the reliability and improve the technological level to ensure the reliability of the seal.

♦Small Footprint

S series transformer oil tank adopts corrugated plate radiator. When the oil temperature changes, the corrugated plate thermal expansion and contraction can replace the role of the oil conservator. The corrugated plate oil tank has a beautiful appearance and small footprint.

After-sales service:
Provide comprehensive pre-sales consulting and program design services.
Provide free repair or replacement service for faults caused by product quality problems during the product warranty period.
Provide lifelong technical support and after-sales service to ensure that customers have no worries.

Product Parameters

6-10kV, Series S22, Off-load, Liquid-immersed Distribution Transformer

Rated Power (kVA)		Voltage and Combination			Vector Group		No-load loss (W)	Load loss (75℃) (W)	No-load Current (%)	Impedance at principal tapping (%)
H. V.(kV)	Tapping	L. V.(kV)
30	6 6.3 10 10.5		±2×2.5±5	0.4	Dyn11 Yzn1 Yyn0	65		455/430	1.5	4.0
50					80		655/625	1.3
63					90		785/745	1.2
80					105		945/900	1.2
100					120		1140/1080	1.1
125					135		1360/1295	1.1
160					160		1665/1585	1.0
200					190		1970/1870	1.0
250					230		2300/2195	0.9
315					270		2760/2630	0.9
400					330		3250/3095	0.8
500					385		3900/3710	0.8
630				Dyn11 Yyn0	460		4460	0.6	4.5
800				560		5400	0.6
1000				665		7415	0.6
1250				780		8640	0.5
1600				940		10440	0.5
2000				1085		13180	0.4	5
2500				1280		13360	0.4

*All parameters are for reference only; The final data will be customized according to the order.

6-10kV, Series S20, Off-load, Liquid-immersed Distribution Transformer

Rated Power (kVA)	Voltage and Combination			Vector Group	No-load loss (W)	Load loss (75℃) (W)	No-load Current (%)	Impedance at principal tapping (%) H. V.(kV)
	H. V.(kV)	Tapping	L. V.(kV)
30	6 6.3 10 10.5	±2×2.5±5	0.4	Dyn11 Yzn11 Yyn0	70	505/480	1.5	4.0
50					90	730/695	1.3
63					100	870/830	1.2
80					115	1050/1000	1.2
100					135	1265/1200	1.1
125					150	1510/1440	1.1
160					180	1850/1760	1.0
200					215	2185/2080	1.0
250					260	2560/2440	0.9
315					305	3065/2920	0.9
400					370	3615/3440	0.8
500					430	4330/4120	0.8
630				Dyn11 Yyn0	510	4960	0.6	4.5
800					630	6000	0.6
1000					745	8240	0.6
1250					870	9600	0.5
1600					1050	11600	0.5
2000					1225	14640	0.4	5
2500					1440	14840	0.4

*All parameters are for reference only; The final data will be customized according to the order.

6-10kV, Series S13, Off-load, Liquid-immersed Distribution Transformer

Rated Power (kVA)	Voltage and Combination			Vector Group	No-load loss (W)	Load loss (75℃) (W)	No-load Current (%)	Impedance (%)
	H. V.(kV)	Tapping	L. V.(kV)
30	6 6.3 10 10.5	±2×2.5±5	0.4	Dyn11 Yzn11 Yyn0	80	630/600	1.5	4.0
50					100	910/870	1.3
63					110	1090/1040	1.2
80					130	1310/1250	1.2
100					150	1580/1500	1.1
125					170	1890/1800	1.1
160					200	2310/2200	1.0
200					240	2730/2600	1.0
250					290	3200/3050	0.9
315					340	3830/3650	0.9
400					410	4520/4300	0.8
500					480	5410/5150	0.8
630				Dynll Yyn0	570	6200	0.6	4.5
800					700	7500	0.6
1000					830	10300	0.6
1250					970	12000	0.5
1600					1170	14500	0.5
2000					1360	18300	0.4	5
2500					1600	21200	0.4

*All parameters are for reference only; The final data will be customized according to the order.

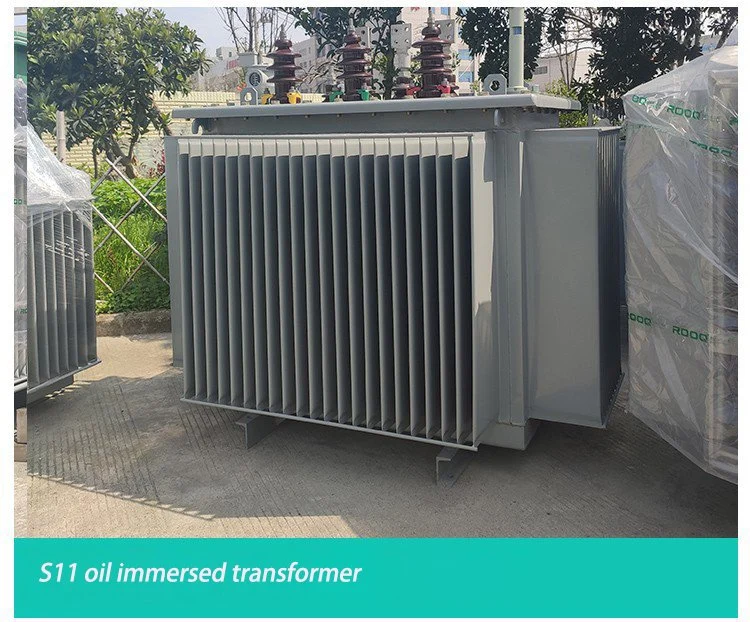

6-10kV, Series S11, Off-load, Liquid-immersed Distribution Transformer

Rated Power (kVA)	Voltage and Combination			Vector Group	No-load loss (W)	Load loss (75℃) (W)	No-load Current (%)	Impedance (%) H. V.(kV)
	H. V.(kV)	Tapping	L. V.(kV)
30	6 6.3 10 10.5	±2×2.5±5	0.4	Dyn11 Yzn1 Yyn0	100	630/600	1.5	4.0
50					130	910/870	1.3
63					150	1090/1040	1.2
80					180	1310/1250	1.2
100					200	1580/1500	1.1
125					240	1890/1800	1.1
160					280	2310/2200	1.0
200					340	2730/2600	1.0
250					400	3200/3050	0.9
315					480	3830/3650	0.9
400					570	4520/4300	0.8
500					680	5410/5150	0.8
630				Dyn11 Yyn0	810	6200	0.6	4.5
800					980	7500	0.6
1000					1150	10300	0.6
1250					1360	12000	0.5
1600					1640	14500	0.5
2000					1940	18300	0.4	5.0
2500					2290	21200	0.4

*All parameters are for reference only; The final data will be customized according to the order.

6-10kV, Series S(B)H15, Amorphous, Off-load, Liquid-immersed Distribution Transformer

Rated Power (kVA)	Voltage and Combination			Vector Group	No-load loss (W)	Load loss (75℃) (W)	No-load Current (%)	Impedance (%)
	H. V.(kV)	Tapping	L. V.(kV)
30	6 6.3 10 10.5 11	±2×2.5 ±5	0.4	Dyn11	33	630/600	1.5	4.0
50					43	910/870	1.2
63					50	1090/1040	1.1
80					60	1310/1250	1.0
100					75	1580/1500	0.9
125					85	1890/1800	0.8
160					100	2310/2200	0.6
200					120	2730/2600	0.6
250					140	3200/3050	0.6
315					170	3830/3650	0.5
400					200	4520/4300	0.5
500					240	5410/5150	0.5
630					320	6200	0.3	4.5
800					380	7500	0.3
1000					450	10300	0.3
1250					530	12000	0.2
1600					630	14500	0.2
2000					750	18300	0.2	5.0
2500					900	21200	0.2

*All parameters are for reference only; The final data will be customized according to the order.

6-10kV, Series S(B)H21, Amorphous, Off-load, Liquid-immersed Distribution Transformer

Rated Power (kVA)	Voltage and Combination			Vector Group	No-load loss (W)	Load loss (75℃) (W)	No-load Current (%)	Impedance (%)
	H. V.(kV)	Tapping	L. V.(kV)
30	6 6.3 10 10.5 11 .	±2×2.5 ±5	0.4	Dyn11	33	535/510	1.5	4.0
50					43	780/745	1.2
63					50	930/890	1.1
80					60	1120/1070	1.0
100					75	1350/1285	0.9
125					85	1615/1540	0.8
160					100	1975/1880	0.6
200					120	2330/2225	0.6
250					140	2735/2610	0.6
315					170	3275/3120	0.5
400					200	3865/3675	0.5
500					240	4625/4400	0.5
630					320	5300	0.3	4.5
800					380	6415	0.3
1000					450	8800	0.3
1250					530	10260	0.2
1600					630	12400	0.2
2000					710	14800	0.2	5.0
2500					860	16300	0.2

*All parameters are for reference only; The final data will be customized according to the order.

6-10kV, Series S(B)H25, Amorphous, Off-load, Liquid-immersed Distribution Transformer

Rated Power (kVA)	Voltage and Combination			Vector Group	No-load loss (W)	Load loss (75℃) (W)	No-load Current (%)	Impedance (%)
	H. V.(kV)	Tapping	L. V.(kV)
30	6 6.3 10 10.5 11	±2×2.5 ±5	0.4	Dyn11	25	510/480	1.5	4.0
50					35	735/700	1.2
63					40	880/840	1.1
80					50	1060/1010	1.0
100					60	1270/1215	0.9
125					70	1530/1450	0.8
160					80	1870/1780	0.6
200					95	2210/2100	0.6
250					110	2590/2470	0.6
315					135	3100/2950	0.5
400					160	3660/3480	0.5
500					190	4380/4170	0.5
630					250	5020	0.3	4.5
800					300	6075	0.3
1000					360	8340	0.3
1250					425	9720	0.2
1600					500	11745	0.2
2000					550	14000	0.2	5.0
2500					670	15450	0.2

*All parameters are for reference only; The final data will be customized according to the order.

6-10kV, Series S(B)H16, Amorphous, Off-load, Liquid-immersed Distribution Transformer

Rated Power (kVA)	Voltage and Combination			Vector Group	No-load loss (W)	Load loss (75℃) (W)	No-load Current (%)	Impedance (%)
	H. V.(kV)	Tapping	L. V.(kV)
30	6 6.3 10 10.5 11	±2×2.5±5	0.4	Dyn11	33	565/540	1.5	4.0
50					43	820/785	1.2
63					50	980/935	1.1
80					60	1180/1120	1.0
100					75	1420/1350	0.9
125					85	1700/1620	0.8
160					100	2080/1980	0.6
200					120	2450/2340	0.6
250					140	2880/2740	0.6
315					170	3440/3280	0.5
400					200	4070/3870	0.5
500					240	4870/4630	0.5
630					320	5580	0.3	4.5
800					380	6750	0.3
1000					450	9270	0.3
1250					530	10800	0.2
1600					630	13000	0.2
2000					750	16400	0.2	5.0
2500					900	19000	0.2

*All parameters are for reference only; The final data will be customized according to the order.

35kV, Series S13, Off-load, Liquid-immersed Distribution Transformer

Rated Power (kVA)	Voltage and Combination			Vector Group	No-load loss (W)	Load loss (75℃) (W)		No-load Current (%)	Impedance (%)
	H. V.(kV)	Tapping	L. V.(kV)
3150	35~38.5	±2×2.5±5	3.15 6.3 10.5	Yd11	2.4	21.9	0.45		7
4000					2.9	25.9	0.45
5000					3.5	29.7	0.45
6300					4.2	33.3	0.45
8000	35~38.5	±2×2.5	3.15 3.3 6.3 6.6 10.5	YNd11	5.8	36.5	0.35		8
10000					7.0	43.0	0.35
12500					8.0	51.1	0.30
16000					9.7	62.5	0.30
20000					11.5	75.5	0.30
25000					13.6	89.3	0.25		10
31500					16.2	106.4	0.25

*All parameters are for reference only; The final data will be customized according to the order.

35kV, Series S13, Off-load, Liquid-immersed Distribution Transformer

Rated Power (kVA)	Voltage and Combination			Vector Group	No-load loss (W)	Load loss (75℃) (W)	No-load Current (%)	Impedance (%)
	H. V.(kV)	Tapping	L. V.(kV)
3150	35~38.5	±2×2.5±5	3.15 6.3 10.5	Yd11	2.0	20.7	0.45	7.0
4000					2.3	24.6	0.45
5000					2.8	28.2	0.45
6300					3.4	31.5	0.45
8000	35~38.5	±2×2.5	3.15 3.3 6.3 6.6 10.5	YNd11	4.7	34.6	0.35	8.0
10000					5.7	40.8	0.35
12500					6.5	48.4	0.30
16000					7.9	59.2	0.30
20000					9.4	71.6	0.30
25000					11.1	84.6	0.25	10
31500					13.1	100.8	0.25

*All parameters are for reference only; The final data will be customized according to the order.

35kV, Series S22, Off-load, Liquid-immersed Distribution Transformer

Rated Power (kVA)	Voltage and Combination			Vector Group	No-load loss (W)	Load loss (75℃) (W)	No-load Current (%)	Impedance (%)
	H. V.(kV)	Tapping	L. V.(kV)
3150	35~38.5	±2×2.5±5	3.15 6.3 10.5	Yd11	1.7	20.7	0.45	7.0
4000					2.0	24.6	0.45
5000					2.4	28.2	0.45
6300					2.9	31.5	0.45
8000	35~38.5	±2×2.5	3.15 3.3 6.3 6.6 10.5	YNd11	4.0	34.6	0.35	8.0
10000					4.8	40.8	0.35
12500					5.5	48.4	0.30
16000					6.7	59.2	0.30
20000					7.9	71.6	0.30
25000					9.4	84.6	0.25	10
31500					11.1	100.8	0.25

*All parameters are for reference only; The final data will be customized according to the order.
