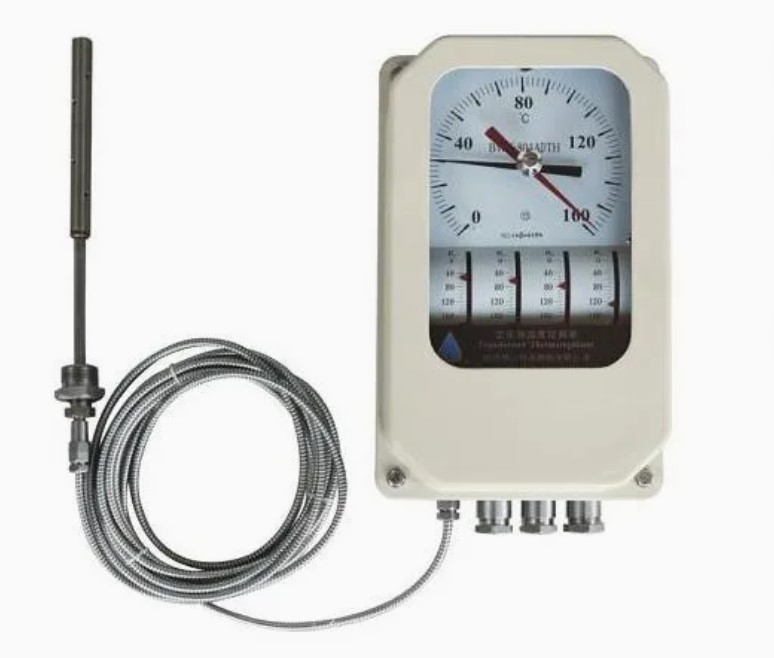

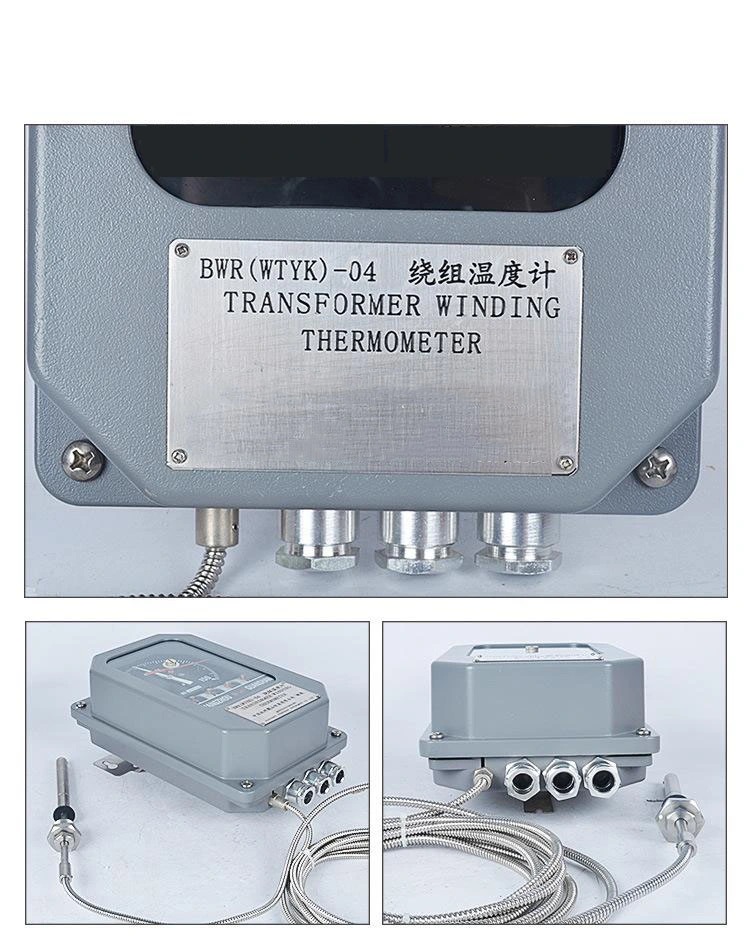

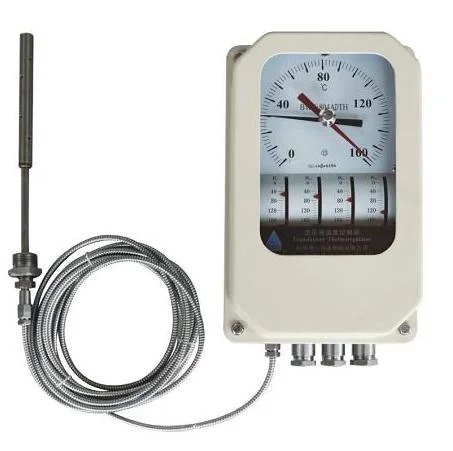

High Quality, Winding Temperature Indicator, Transformer Winding Thermometer

Product Description

BWR series WTI main technical data:

Working temperature: -40ºC ~ 55ºC

Measuring range: 0ºC ~ 150ºC or upon the customers' requirement

Accuracy: ±2%

Control capability:

(1)Adjustable range: full span

(2)Setting accuracy: ±2ºC

(3)Switch differential: 6ºC ±2ºC

(4)Rated Power: AC 250/15A

(5)4 switches standard setting point: K1=55ºC K2=75ºC K3=90ºC K4=130ºC

Note: The switch quantity & setting point can be made according to the customers' requirement, and it comes with max. 6 switches.

Parameter

(1)Without DC Power 4 -20mA

(2)Pt100 (model A)

(3)With DC power 4- -20mA (model D)

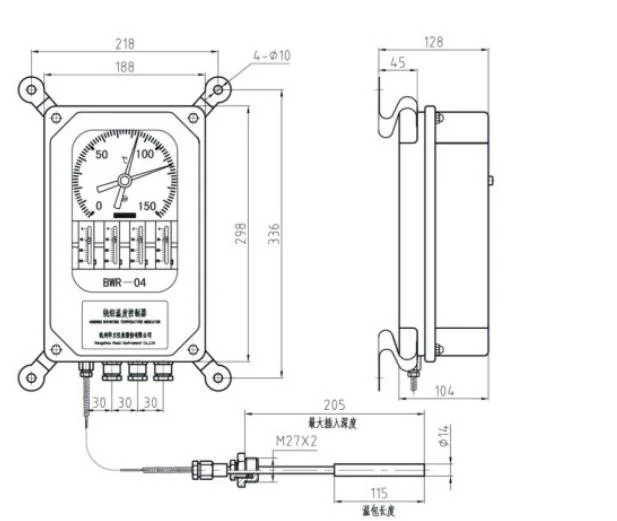

(4)DC 0-5V (modelE) Bulb sensor dimension: φ 14x115 Connection: M27x2 or upon the customers'

requirement Protection class: IP55

Current converter main technical date:

Working temperature:-40ºC ~ 55ºC

Input:0.6A~5A,Output:0.5A~1.75A

Protection class: IP55
