Description

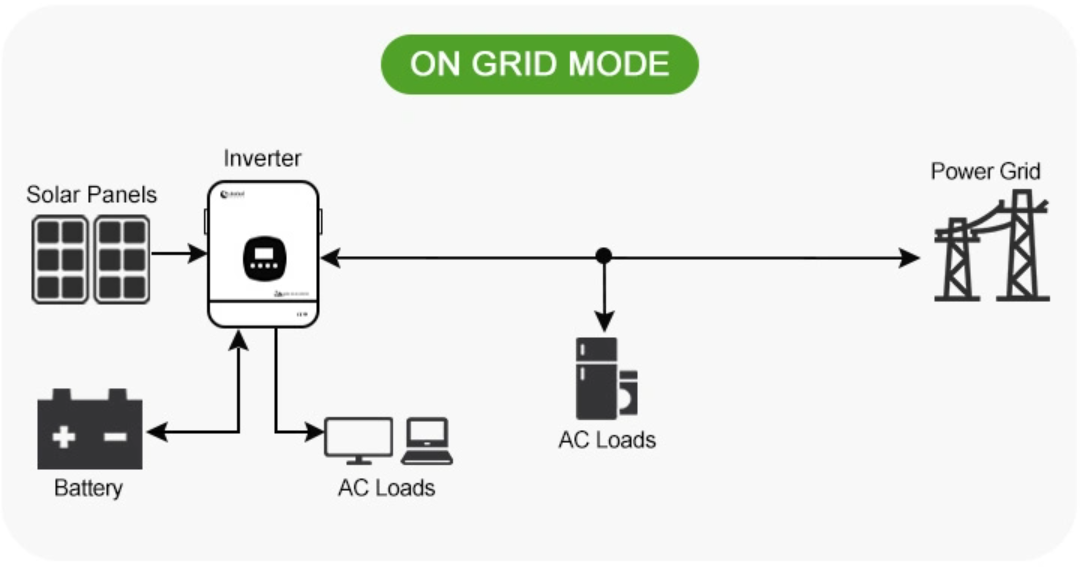

A photovoltaic inverter (PV inverter or solar inverter) is an inverter that converts the variable DC voltage generated by photovoltaic (PV) solar panels into AC power at the mains frequency, which can be fed back to commercial transmission systems or used for off grid power grids. Photovoltaic inverter is one of the important system balancing (BOS) components in photovoltaic array systems, which can be used in conjunction with general AC powered equipment. Solar inverters have special functions that complement photovoltaic arrays, such as maximum power point tracking and islanding protection.
Components & Protective Equipment:
Fault Indicators
Fusing Equipment
Expulsion Links
Bay-O-Net
NX Current Limiting
X-limiter Current Limiting
NX Companion Back-up C
ELF Current-Limiting
Tandem ELF
L Bay-O-Net
ELSG Fuse
Encapsulated Fuse
Magnex Interrupter
Transformer Components
Secondary Bushings
Bushing Wells
Integral Load break Bushing
Bushings
Arrester Disconnect
Tap Changer
Parameter
