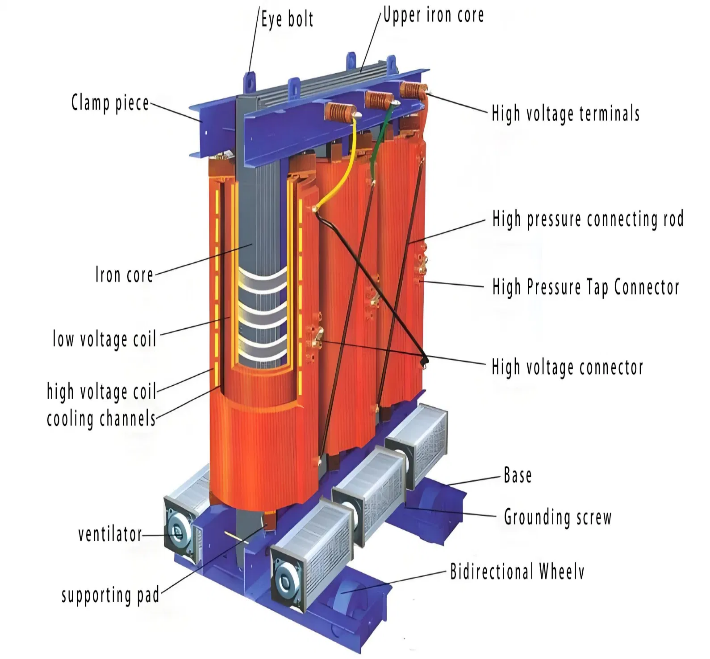

1. Iron core: stacked by silicon steel sheet, is the magnetic circuit part of the transformer, used to guide the magnetic flux.
2. Winding: divided into high-voltage winding and low-voltage winding, respectively wound on the iron core, used to realize the conversion and transmission of electric energy.
3. Insulating cylinder: placed between high and low voltage coils, used to increase electrical insulation and ensure the safe operation of the transformer.
4. pads: used to support and restrain the coils to maintain their stability and shape.
5. Fasteners: used to connect and fix each part of the transformer, with anti-loosening performance.
Product Description:
Overview:
10kV & 35Kv dry-type transformer is a kind of transformer whose core and windings are not immersed in insulating liquid, which has the advantages of safety, fire prevention, no pollution, etc. It is widely used in power systems in industrial, commercial and civil fields.
Main features:
Superior safety performance: fireproof, no pollution, can run directly in the load center, improve system safety.
High mechanical strength: strong short-circuit resistance, small partial discharge, good thermal stability, long service life.
Remarkable energy-saving effect: low loss, low noise, high operating efficiency, in line with modern energy saving and environmental protection requirements.
Excellent heat dissipation performance: good heat dissipation performance, strong operating capacity, forced air-cooling can increase the capacity of operation.
Strong environmental adaptability: good moisture-proof performance, adapting to high humidity and other harsh environments.
Low maintenance cost: environmentally friendly, flame retardant, explosion-proof, maintenance-free and other features, reducing operation and maintenance costs.
Small size and light weight: easy transportation and installation, space saving.
After-sales service:
Provide comprehensive pre-sales consulting and program design services.
Provide free repair or replacement service for faults caused by product quality problems during the product warranty period.
Provide lifelong technical support and after-sales service to ensure that customers have no worries.
Basic Info.
Model NO. | Dry-type Transformer | Cooling Method | Dry-type Transformer |
Winding Type | Two-winding Transformer | Certification | ISO9001-2000, ISO9001, CCC |
Usage | Rectifier Transformer, Power Transformer, Distribution Transformer | Frequency Characteristics | 50 & 60Hz |
Capacity | 30-25000kVA or Customized | Rated H. V. | 10kv & 35kV |
Winding Material | Copper or Aluminum | Linking Group | Dyn11, Yyn0 or Customized |
Insulation Level | IEC Standard | Reference Standards | IEC60076 |
Transport Package | Plywood Package | Specification | up to 25MVA |
HS Code | 8504340000 | Production Capacity | 4000 Units/Year |
Parameter
Parameter term | parameter values |
Rated voltage | Various specifications available, such as 20KV, 10KV, 6KV, etc. |
Capacity range | Various specifications are available, such as 500KVA, 630KVA, 800KVA, 1250KVA, etc. |
Cooling Method | Natural air-cooled/forced air-cooled (according to specific models) |
Insulation material | Epoxy resin or other high-performance insulating materials |
Protection class | IPXX (according to the specific model, need to mark the specific level) |
Winding type | Foil winding structure (low voltage) / "trapezoidal" segmented layer structure (high voltage) |
Core material | High quality cold rolled grain oriented silicon steel sheet |
