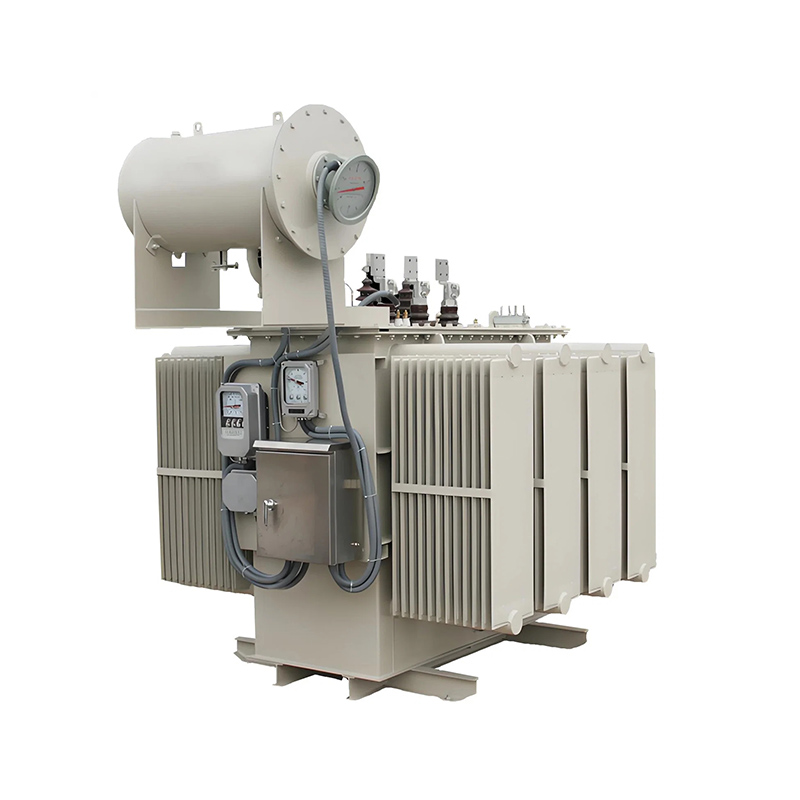

Distribution transformer is also known as a typical kind of isolation transformer. The main function of this transformer is to alter the high voltage to the normal voltage like 208V 380V and 415V to use in electric that can be used in industries, infrastructure and households. With the rise of decentralized generated electricity, they are now also responsible for supplying power to the grid.
1. The transformer body adopts a new insulation structure, which improves the short-circuit resistance.
2. The transformer core is made of high-quality cold-rolled silicon steel sheets with high magnetic conductivity.
3. The transformer core consists of high/low-voltage windings are selected high-quality oxygen-free copper wire, and multi-layer cylindrical structure.
4. All fasteners with special anti-loosening treatment.
5. The oil tank is corrugated structure, the cover and the edge of the box are completely welded or fastened with bolts in two types, which fundamentally prolongs the service life of the transformer oil and insulating materials.
The above standards are subject to the latest released information; Equipment requirements should be based on the corresponding latest national professional standards.
Basic Info.
Cooling Method | Oil-type Transformer | HS Code | 8504340000 |
Winding Type | Two-winding Transformer or Customized | Certification | ISO9001-2000, ISO9001, CCC |
Usage | Rectifier Transformer, Power Transformer, Distribution Transformer | Frequency Characteristics | 50 & 60Hz |
Shape of Core | EE | Brand | Customized |
Capacity | 30-31500kVA or Customized | Rated H. V. | 10kv & 35kV |
Winding Material | Copper or Aluminum | Linking Group | Dyn11, Yyn0 or Customized |
Insulation Level | IEC Standard | Reference Standards | IEC60076 |
Transport Package | Plywood Package | Specification | up to 31.5MVA |
Standard | Rated Voltage | Power |
GB20052-2020 NX1, NX2 and NX3 Series EU Tier-1 and Tier-2 Low Loss IEC, IEE etc. | ≤35kV | 50kVA ~ 25MVA |
