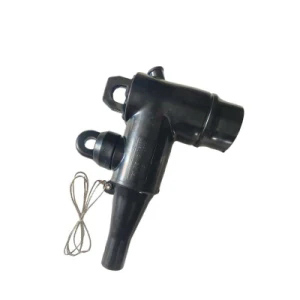

Shielded Separable Connector is applied to the main network system of the ring main unit, cable branch box, or the ring network system of the box transformer as a connection for incoming and outgoing cables. It can connect to a 1250A busbar and form multiple circuits by connecting touchable heads for multiple combinations.
The live test point can be equipped with a live indicator to indicate the live status of the line, which can meet the requirements of line phase detection.
The touchable front connector has a rated current of 200A,250A,630A,1250A and is suitable for XLPE power cables with a cross-sectional area of 25-400mm2.
Basic Info.
Production | Shielded Separable Connector | Usage | Power electric |
Specification | GB/IEC | Trademark | Customized |
Function | Shielded Separable Connector is applied to the main network system of the ring main unit, cable branch box, or the ring network system of the box transformer as a connection for incoming and outgoing cables. | Transport Package | Plywood |
Origin | Hefei, China | HS Code | 8536909000 |
Characteristics
Performance | 15kV 200AMP | 25kV 600AMP | 25kV 200AMP | 25kV 600AMP | 24kV 250AMP | 15kV 600AMP | 24kV 250AMP | 24kV 630AMP | 40.5kV 1250AMP |
Pattern |
|
|
|
|
|
|
|
|
|
Type | American style | European style | |||||||
10kV 200A | 10kV 600A | 20kV 200A | 25kV 600A | 10kV 250A | 10kV 600A | 20kV 250A | 20kV 630A | 35kV 1250A | |
Rated Voltage (kV) | 8.7 kV 15kV | 15.2 kV 26.3kV | 15.2 kV 26.3kV | 15.2 kV 26.3kV | 10 kV 20kV | 8.7kV 15kV | 10 kV 20kV | 10 kV 20kV | 26kV 35kV |
AC Voltage Withstand Test | 45kV | 55kV | 55kV | 55kV | 55kV | 45kV | 55kV | 55kV | 117kV |
DC Withstand Voltage Test | 35kV | 61kV | 61kV | 61kV | 48kV | 35kV | 48kV | 48kV | 104kV |
Lightning Impulse 1.5/50μs | 95kV | 125kV | 125kV | 125kV | 125kV | 95kV | 125kV | 125kV | 200kV |
Partial Discharge Voltage | 15kV | 22kV | 22kV | 22kV | 20kV | 15kV | 20kV | 20kV | 45kV |
Thermal Stability Current | 16kA 1s | 30kA 2s | 16kA 1s | 30kA 2s | 16kA 1s | 30kA 1s | 16kA 1s | 30kA 2s | 30kA 4s |
Dynamic Stable Current | 40kA | 105kA | 40kA | 105kA | 40kA | 105kA | 40kA | 105kA | 105 |
Cable range (mm2) | 25~150 | 25~400 | 25~50 | 35~400 | 25~150 | 25~400 | 25~150 | 35~400 | 50~500 |
